Relational Charts: Graphs, Flows, and Hierarchies

Why relational charts need their own data model

Everything in the other articles is tabular: one row, one mark. A network diagram breaks that assumption twice over. A node has no intrinsic position — where it sits is the output of a layout computation. And one row is not even the right unit: a relation has two endpoints, so nodes and edges live in different tables with different cardinality.

plotit answers this the way Vega’s dataflow does — a layout is a data transform, not a layer. You coerce relations into a plotit_graph (a named collection of plain data frames), pass each layout_*() step a plotit object, and the layout bakes coordinates into the tables. Rendering then uses the ordinary marks you already know:

edges / matrix / tree  ──as_graph()──▶  plotit_graph  ──layout_*()──▶  x/y columns appear
                                                                            │
                                  plotit(graph) ──▶ mark_point(data = ~nodes)  ──▶

Nothing else about the grammar changes: scale_*(), label_*(), style(), export(), the + escape hatch, and ... passthrough all work on relational plots exactly as before.

Step 1 — `as_graph()`: one container, five input formats

library(plotit)

edges <- data.frame(
  source = c("A", "A", "B", "B", "C", "D"),
  target = c("B", "C", "C", "D", "D", "A"),
  value  = c(4, 2, 6, 3, 5, 1)
)
g <- as_graph(edges)
names(g)
#> [1] "nodes" "edges"
g$nodes
#>   id
#> 1  A
#> 2  B
#> 3  C
#> 4  D

A plotit_graph is a named list of data frames — nodes and edges are the canonical tables, and layouts may add derived ones (ribbons, arcs, leaves). as_graph() recognizes five input shapes:

Input	Shape required	Typical source
edge table	`source`/`target` (+ optional `value`); other names via `source =`/`target =`/`value =` arguments	tidy graphs, event logs
matrix / `table`	`M[row, col]` melts to source = row, target = col (zero cells dropped)	flow matrices, confusion matrices
`hclust` / `dendrogram`	converted automatically; merge heights kept on nodes	cluster trees
hierarchy table	`id` + `parent` (+ optional per-leaf `value`)	org charts, taxonomies, file trees
`tbl_graph`	activated node/edge tables, direction detected	tidygraph pipelines

Keys are coerced to character; when a nodes table is omitted, nodes are synthesized in first-appearance order (the Vega convention). A node table must carry an id column:

nodes <- data.frame(
  id    = c("A", "B", "C", "D"),
  group = c("core", "core", "leaf", "leaf"),
  mass  = c(90, 60, 30, 10)
)
as_graph(edges, nodes = nodes)$edges
#>   source target value
#> 1      A      B     4
#> 2      A      C     2
#> 3      B      C     6
#> 4      B      D     3
#> 5      C      D     5
#> 6      D      A     1

Step 2 — `layout_*()`: coordinates as transforms

Seven layouts, all pure R, all deterministic (the force engine is seeded), and all returning a new object — pipelines never mutate:

p_force <- g |>
  plotit() |>
  layout_force(seed = 1)

p_circle <- g |>
  plotit() |>
  layout_circle(order_by = "degree")

layout_force() — Fruchterman–Reingold simulation (repulsion matrix + attraction accumulate + linear cooling). seed guarantees reproducibility, iterations controls quality, and weights = TRUE lets edge value pull harder.
layout_circle() — nodes on a ring, ordered by id or degree.
layout_tree(direction = "down" | "up" | "left" | "right") — orthogonal tree from an id/parent hierarchy.
layout_dendrogram(direction = ...) — same tree but keeps merge heights as the depth axis (from hclust inputs).
layout_treemap() — Bruls squarified rectangles (xmin…ymax + a derived leaves table).
layout_sankey() — longest-path layering + barycenter sweeps; emits bezier ribbons.
layout_chord() — sector angles proportional to flow; emits arcs and ribbons.

Every laid-out table carries geometry columns — x/y on nodes, x/y/xend/yend on edges, corner boxes on treemap leaves, polygon chains in ribbons/arcs. Which is exactly what marks speak. Layouts are idempotent recomputations: chain another layout_*() later and it wins (stale geometry is stripped first).

p <- g |>
  plotit() |>
  layout_force(seed = 1)
head(data.frame(p@graph$edges))
#>   source target value           x           y        xend        yend
#> 1      A      B     4  0.49970558 -0.03590301 -0.03056892  0.50000000
#> 2      A      C     2  0.49970558 -0.03590301 -0.49970558  0.03343029
#> 3      B      C     6 -0.03056892  0.50000000 -0.49970558  0.03343029
#> 4      B      D     3 -0.03056892  0.50000000  0.03313736 -0.50000000
#> 5      C      D     5 -0.49970558  0.03343029  0.03313736 -0.50000000
#> 6      D      A     1  0.03313736 -0.50000000  0.49970558 -0.03590301

Step 3 — render with ordinary marks via `~table`

Pass a one-sided formula as a mark’s data to select a graph table. Layout geometry binds automatically (x/y, endpoints, corners — whichever the mark understands), so you rarely map positions at all:

g |>
  plotit() |>
  layout_force(seed = 1) |>
  mark_rule(data = ~edges, color = "grey70") |>
  mark_point(data = ~nodes) |>
  label_title("Force-directed graph, explicit pipeline")

Node attributes drive visual channels by mapping them in the layer (the graph has no global mapping — aesthetics are declared per table):

as_graph(edges, nodes = nodes) |>
  plotit() |>
  layout_force(seed = 7) |>
  mark_rule(data = ~edges, color = "grey70") |>
  mark_point(data = ~nodes, encode(size = mass, colour = group)) |>
  scale_size(range = c(3, 9)) |>
  label_title("Node attributes drive visual channels")

This explicit form is the power user’s route: any mark that understands a table’s columns can render it, and you can interleave more than the sugars do (curved links, labels on one subset, halos…).

Step 4 — the sugar marks: one call for the four classics

For the most common relational charts, mark_network(), mark_sankey(), mark_chord() and mark_treemap() bundle layout + layers + label styling into a single verb. Each expands exactly to a documented pipeline, so nothing is hidden — and the laid-out tables stay on @graph afterwards for further tuning:

flows <- data.frame(
  source = c("A", "A", "B", "B", "C"),
  target = c("B", "C", "C", "D", "D"),
  value  = c(10, 5, 8, 3, 6)
)
flows |>
  plotit(encode(
    source = source, target = target,
    value = value, fill = source
  )) |>

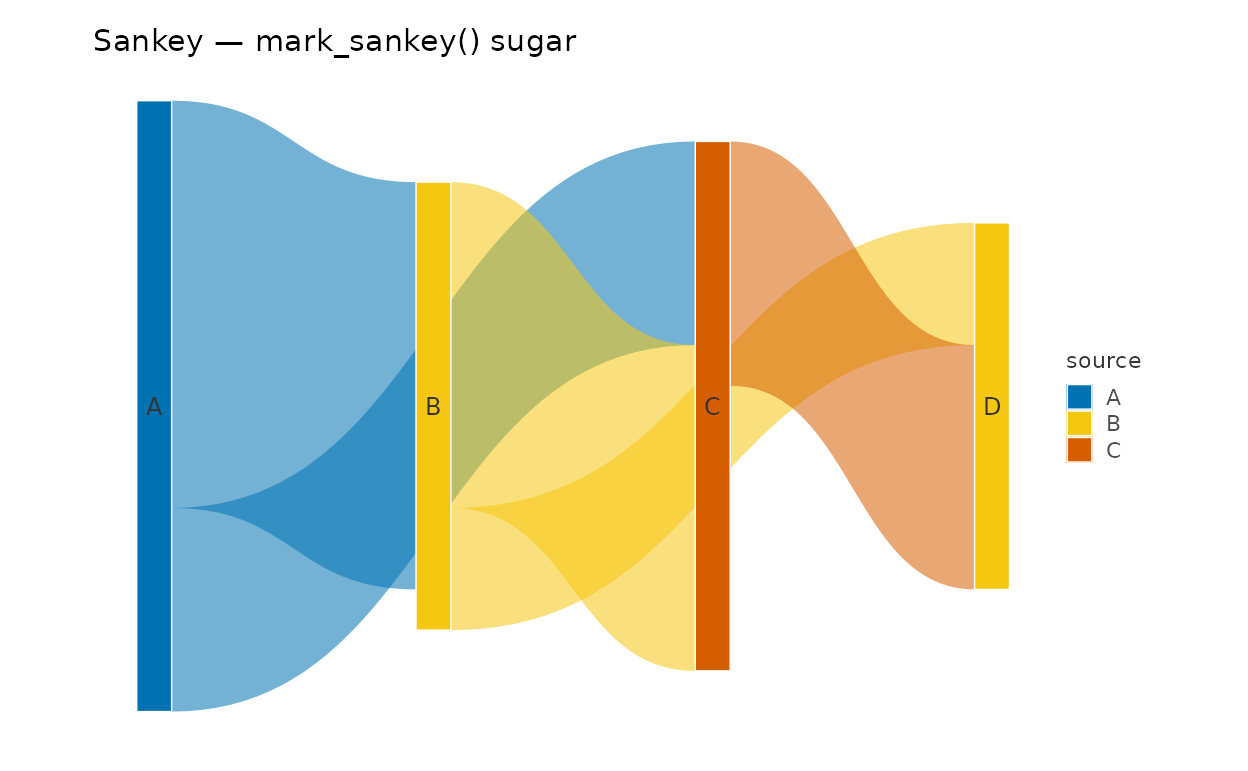

  mark_sankey(edge_alpha = 0.55) |>
  label_title("Sankey — mark_sankey() sugar")
#> Coordinate system already present.
#> ℹ Adding new coordinate system, which will replace the existing one.

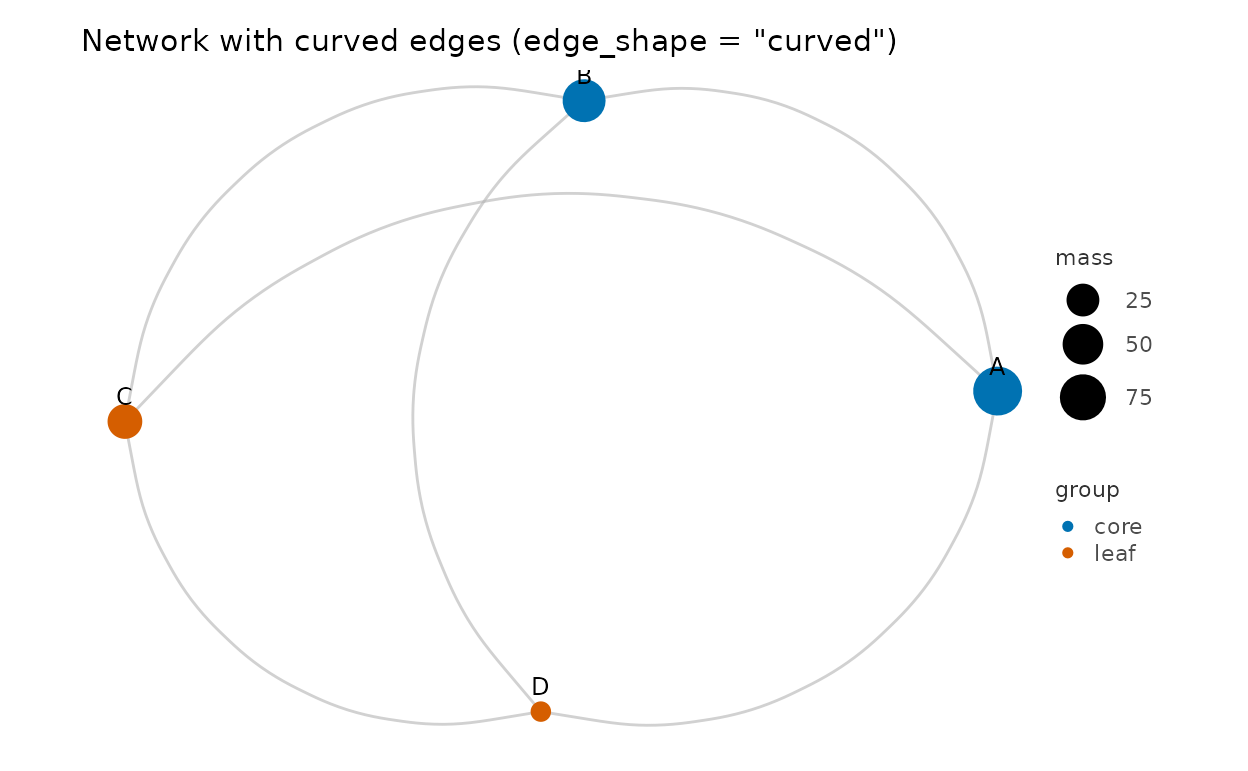

nodes |>
  plotit(encode(colour = group, size = mass, label = id)) |>
  mark_network(edges = edges, seed = 3, edge_shape = "curved", edge_alpha = 0.6) |>
  scale_size(range = c(3, 8)) |>
  label_title("Network with curved edges (edge_shape = \"curved\")")

edge_shape = "curved" routes the edge layer through mark_curve() (straight rules remain the default). The four sugars share one vocabulary: node_color, edge_color / edge_width / edge_alpha, and show_labels — see ?mark_network.

h <- data.frame(
  id     = c("root", "em", "srch", "a", "b", "c", "d"),
  parent = c(NA, "root", "root", "em", "em", "srch", "srch"),
  value  = c(NA, NA, NA, 32, 24, 12, 8)
)
h |>
  plotit(encode(fill = id)) |>

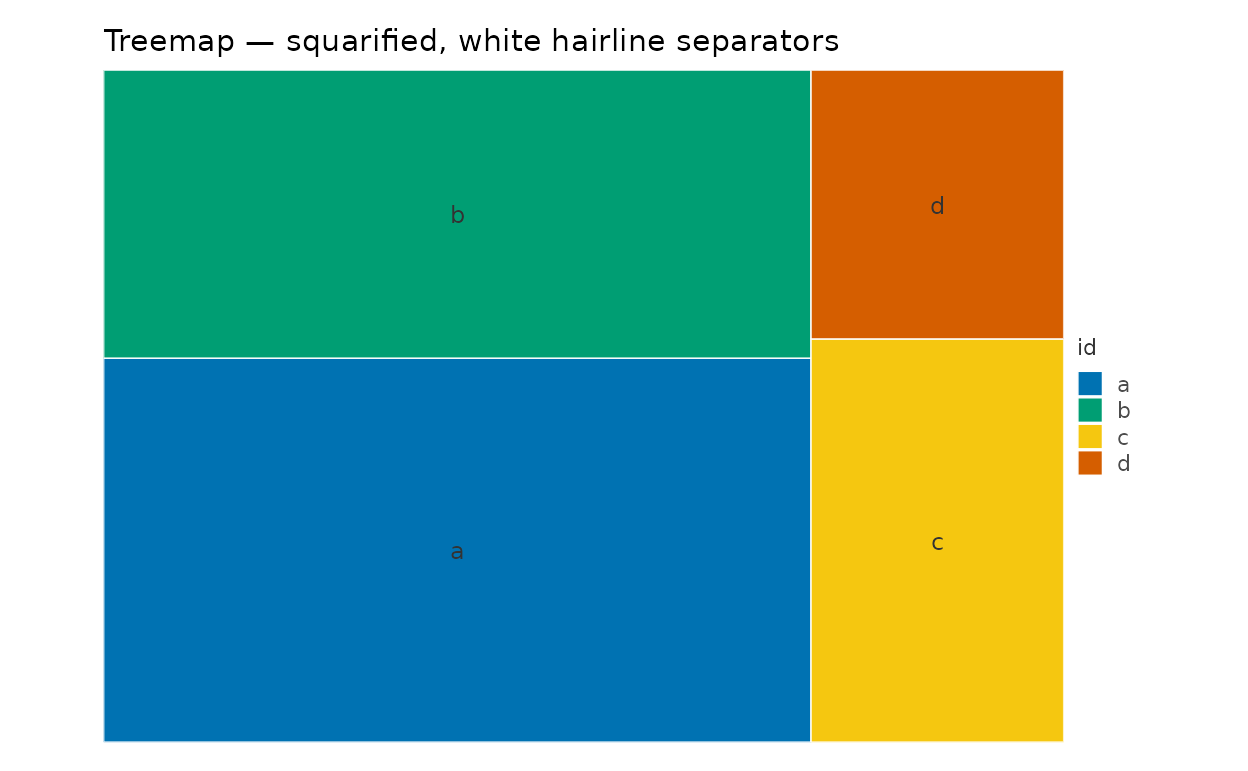

  mark_treemap() |>
  label_title("Treemap — squarified, white hairline separators")

mat <- matrix(c(0, 5, 2, 8, 0, 3, 1, 4, 0),
  nrow = 3,
  dimnames = list(
    c("email", "browsers", "news"),
    c("email", "browsers", "news")
  )
)
as_graph(mat, directed = TRUE)$edges |>
  plotit(encode(
    source = source, target = target,
    value = value, fill = source
  )) |>
  mark_chord() |>
  label_title("Chord from an adjacency matrix")

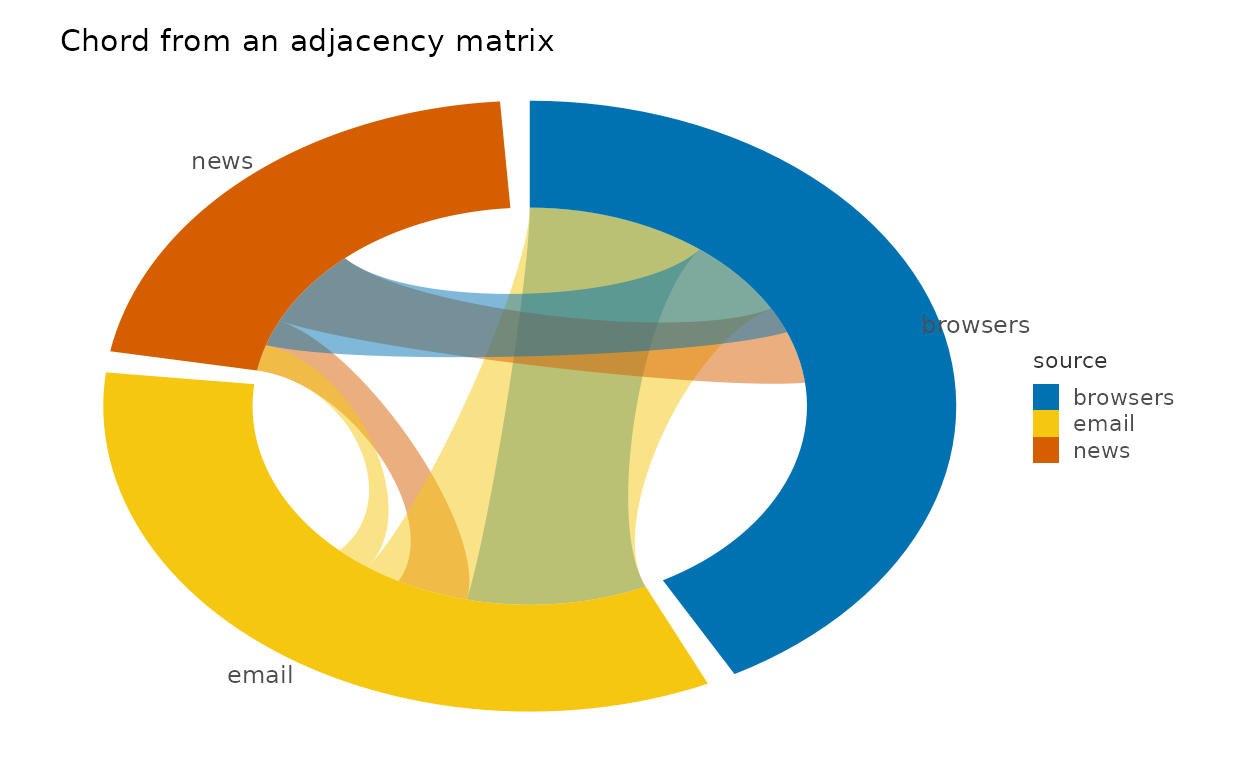

Composing relational views from primitives

The payoff of “layout = transform” is that new chart types are just pipelines — no new verbs.

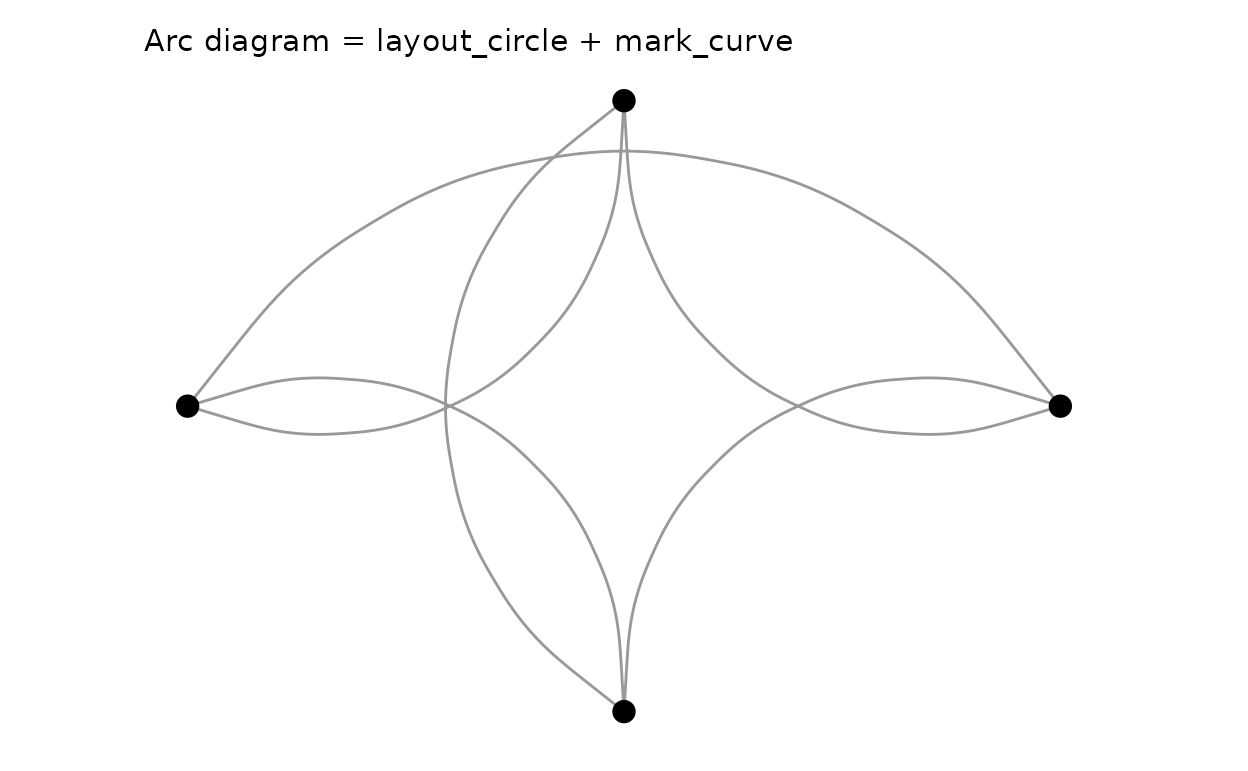

Arc diagram (network on a line)

A circular layout drawn with curved links is the classic arc diagram; for a straight baseline, place nodes manually with a manual-style pipeline (x = level(seq), y = 0 columns bound with mark_point) and keep mark_curve for the links:

edges |>
  as_graph(nodes = data.frame(id = c("A", "B", "C", "D"))) |>
  plotit() |>
  layout_circle(order_by = "degree") |>
  mark_curve(data = ~edges, curvature = 0.6, color = "grey60") |>
  mark_point(data = ~nodes, size = 3.5) |>
  label_title("Arc diagram = layout_circle + mark_curve")

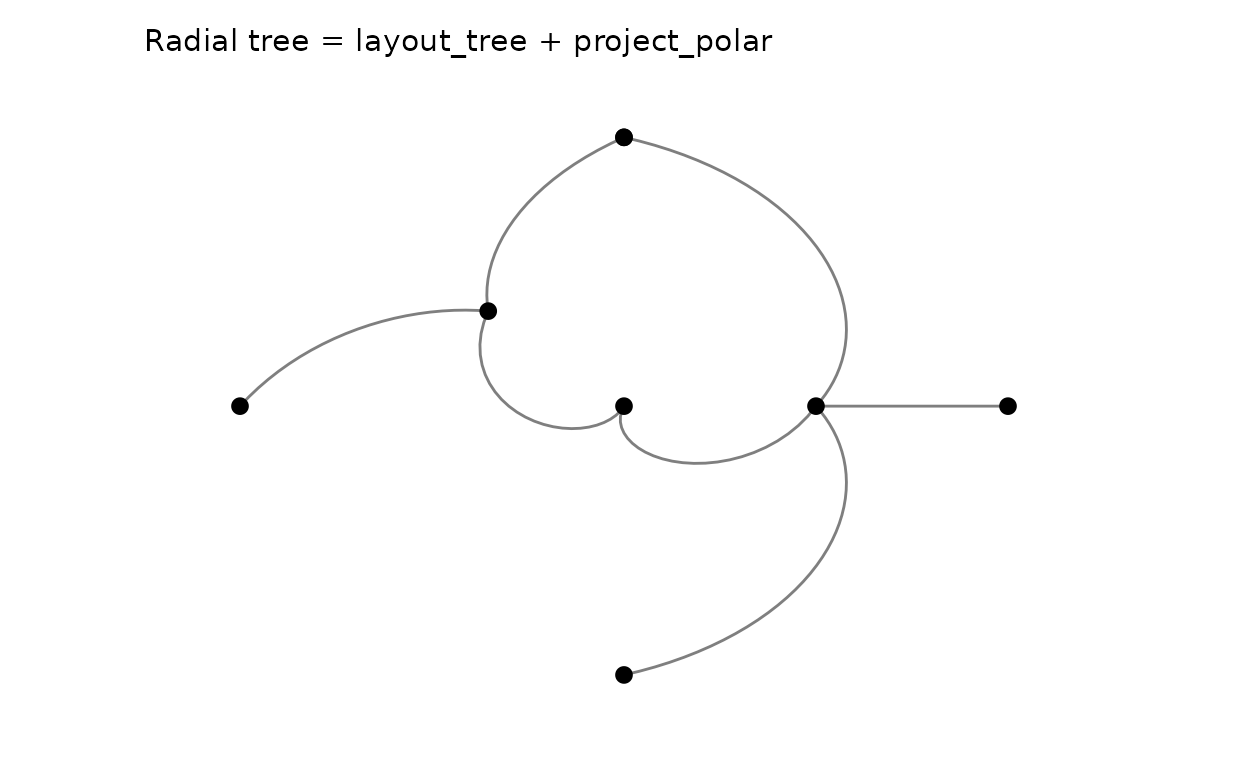

Radial tree

layout_tree(direction = "right") puts depth on x and leaf order on y; project_polar(theta = "y") turns the pair into radius/angle:

as_graph(data.frame(
  id     = c("root", "A", "B", "a1", "a2", "a3", "b1", "b2"),
  parent = c(NA, "root", "root", "A", "A", "A", "B", "B")
)) |>
  plotit() |>
  layout_tree(direction = "right") |>
  mark_rule(data = ~edges) |>
  mark_point(data = ~nodes, size = 2.5) |>
  project_polar(theta = "y") |>
  label_title("Radial tree = layout_tree + project_polar")

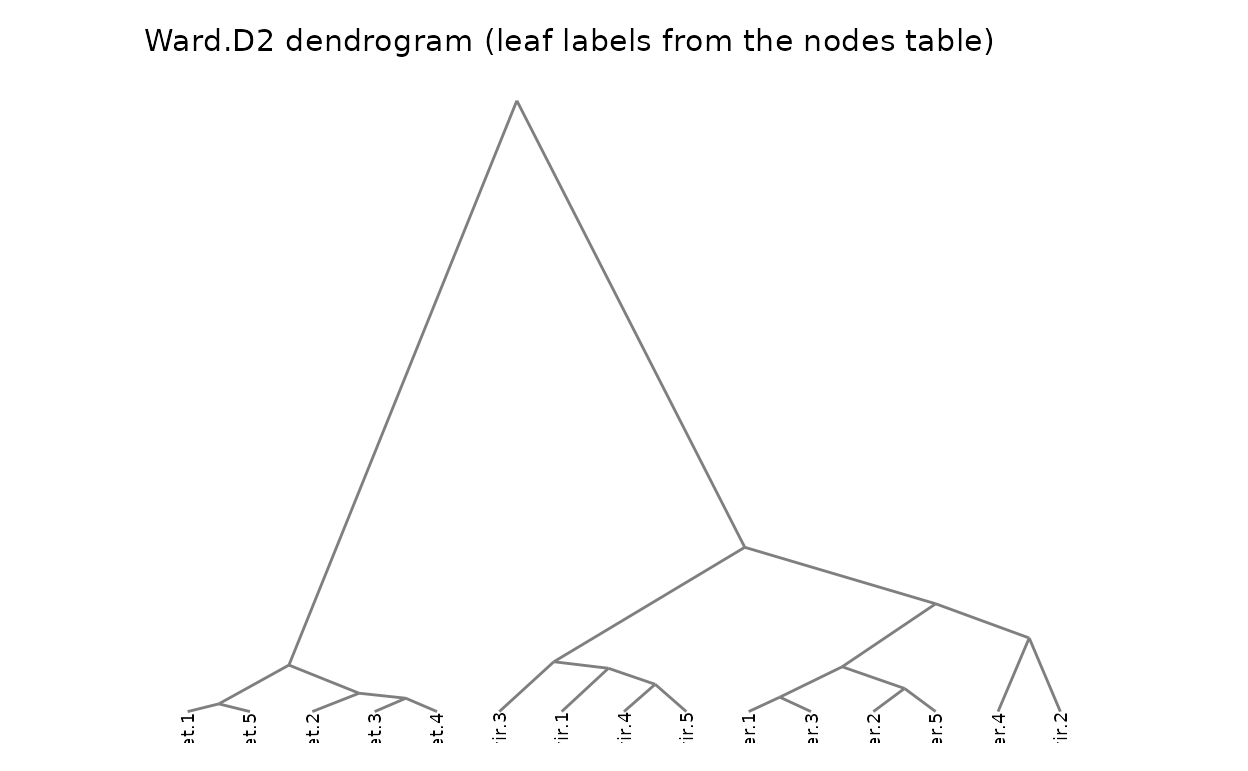

Dendrogram from a cluster

# A 150-leaf dendrogram smears its labels; a small subset keeps it legible.
iris15 <- iris[c(1:5, 51:55, 101:105), 1:4]
rownames(iris15) <- paste0(rep(c("set", "ver", "vir"), each = 5), ".", 1:5)
hc <- hclust(dist(iris15), method = "ward.D2")
p_dendro <- as_graph(hc) |>
  plotit() |>
  layout_dendrogram()
p_dendro |>
  mark_rule(data = ~edges) |>
  mark_text(
    data = subset(p_dendro@graph$nodes, leaf),
    mapping = encode(x = x, y = y, label = id),
    size = 2.5, angle = 90, hjust = 1, vjust = 0.5
  ) |>
  label_title("Ward.D2 dendrogram (leaf labels from the nodes table)")

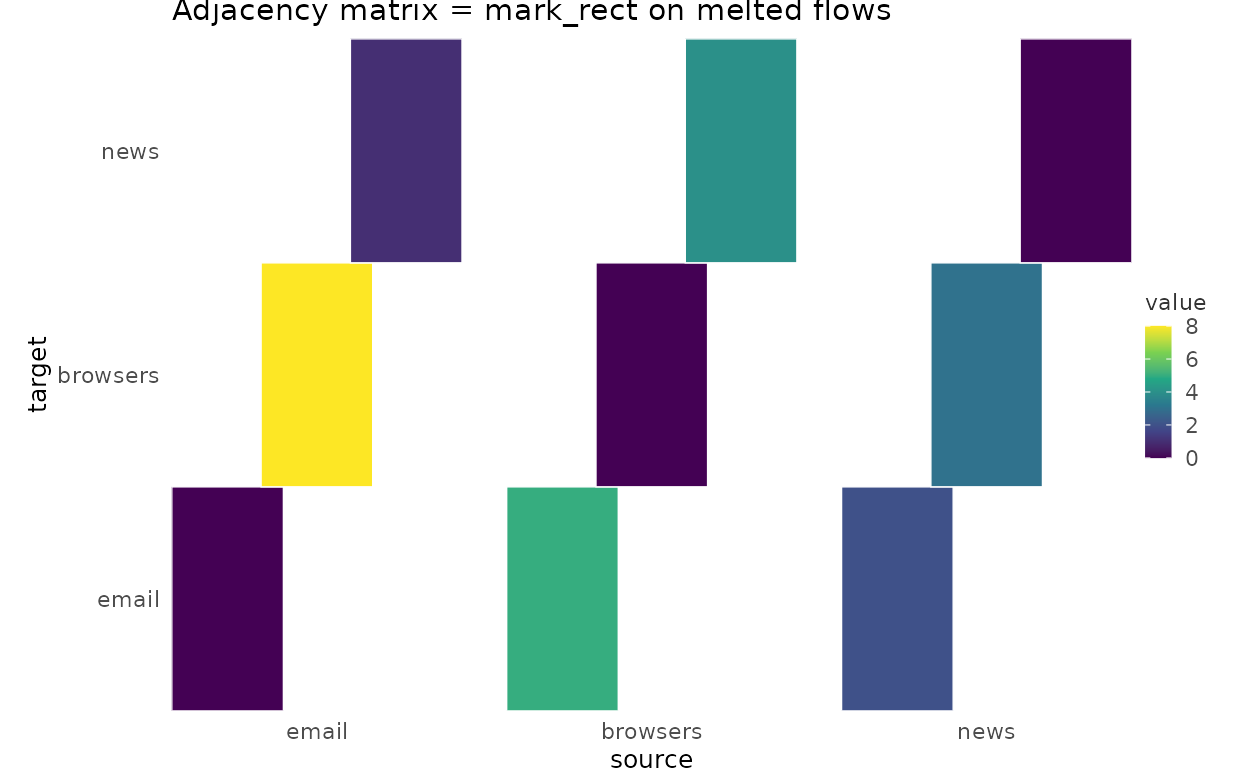

Adjacency-matrix heatmap (relations as grid)

For small graphs a melted flow matrix rendered with mark_rect() is an honest alternative to a hairball:

df <- as.data.frame(as.table(mat))
names(df) <- c("source", "target", "value")
df |>
  plotit(encode(x = source, y = target, fill = value)) |>
  mark_rect() |>
  label_title("Adjacency matrix = mark_rect on melted flows")

Limitations and guarantees

split_*() faceting of graph data is deliberately unsupported in v1: layouts compute positions globally, so facet-wise edge filtering would produce inconsistent tables. Facet the inputs instead.
The force layout is deterministic given a seed; changing iterations may still reorder nodes. For absolute stability, carry explicit x/y columns on the nodes table (they pass through mark_point(data = ~nodes) untouched).
Every sugar mark keeps its laid-out tables on @graph and its expansion in the docs — a sugar can always be “unwrapped” to the explicit pipeline without any visual change.
Straight vs curved edges, label placement, and per-group styling belong to the explicit pipeline form; sugars expose only the vocabulary above.

Design lineage

Vega-Lite reaches this territory with imperative joinaggregate/custom layout transforms; AntV G2 5.0 ships sankey/chord/forceGraph as library marks whose internal expansion is again a handful of primitive marks; D3 hands you layout functions and expects the binding yourself; Observable Plot covers curves and matrices but not graph layouts. plotit splits the difference: the engine stays in the package (pure R, deterministic, dependency-free), the geometry lands in ordinary data frames, and the renderer is the same mark_* grammar you already use for scatter plots — composition, not special cases.
