Text layer

Adds a text label layer. For automatic label placement with collision avoidance, install the optional ggrepel package and set repel = TRUE.

Usage

mark_text(
  plot,
  mapping = NULL,
  data = NULL,
  position = NULL,
  ...,
  repel = FALSE,
  rasterize = FALSE,
  rasterize_dpi = 300,
  rasterize_dev = "cairo"
)

Arguments

plot

A plotit object

mapping

Optional new aesthetics (e.g. encode(label = ...))

data

Optional data for this layer

position

Position adjustment.

...

Other arguments passed to geom_text or geom_text_repel. With repel = TRUE the frequently used ggrepel passthrough parameters are (defaults from the ggrepel docs): max.overlaps (plural! labels overlapping more than this many others are dropped; default getOption("ggrepel.max.overlaps", 10); Inf keeps every label), min.segment.length = 0.5 (leader-line threshold, 0 draws all), force = 1, force_pull = 1, direction = "both", seed = NA (set a number for reproducible placement), nudge_x = 0, nudge_y = 0, point.padding = 1e-6, box.padding = 0.25, max.time = 0.5, max.iter = 10000, xlim = c(NA, NA), ylim = c(NA, NA).

repel

If TRUE, use ggrepel::geom_text_repel instead of geom_text. Requires the ggrepel package.

rasterize

If TRUE, rasterize via ggrastr::rasterise().

rasterize_dpi

DPI for rasterization (default 300).

rasterize_dev

Graphics device for rasterization (default "cairo").

Value

Modified plotit object

References

Observable Plot: Plot.text

ggrepel: geom_text_repel

Examples

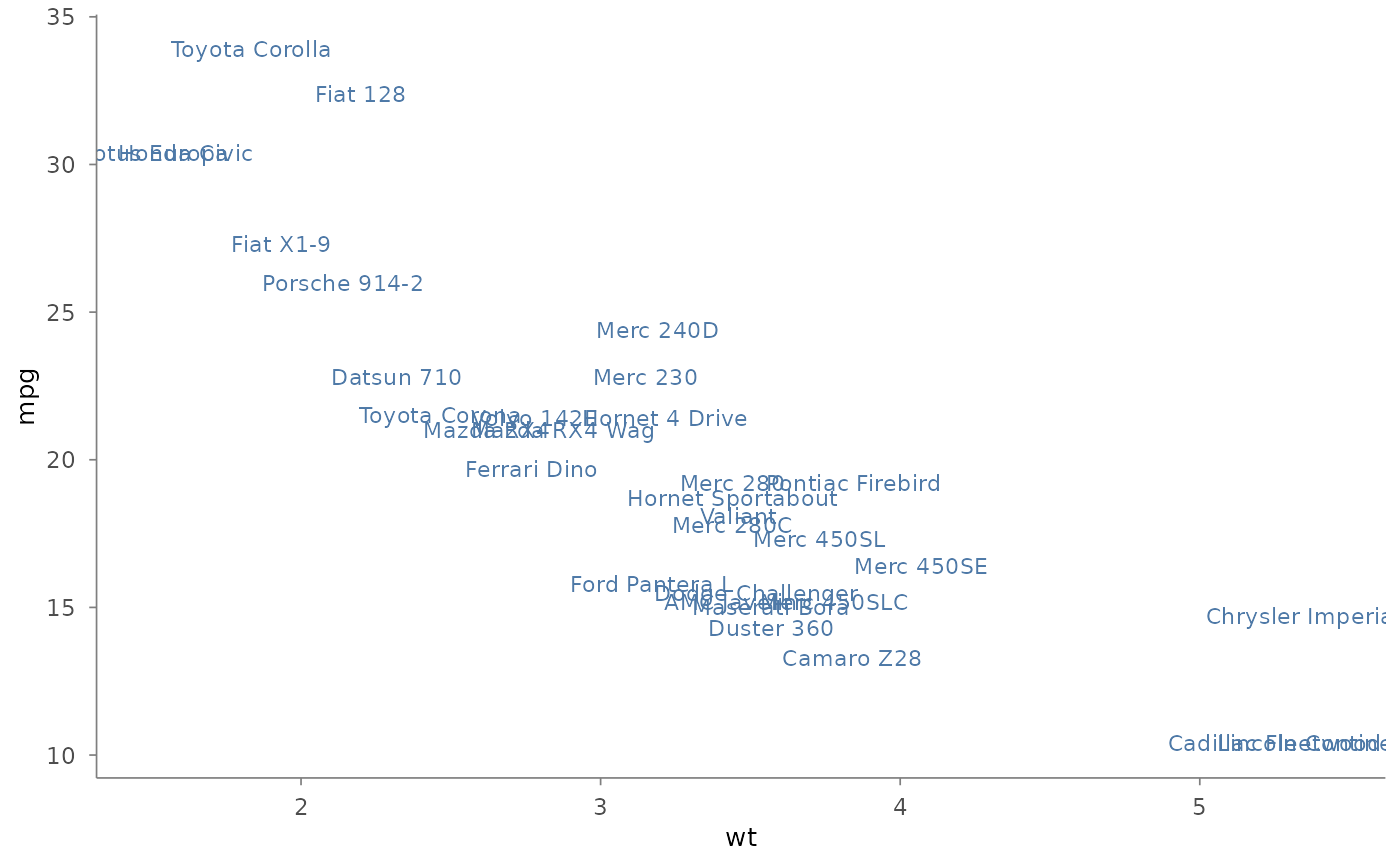

plotit(mtcars, encode(x = wt, y = mpg, label = rownames(mtcars))) |>
  mark_text(size = 3)
