Group annotation envelope layer — mark

Draws a smooth envelope around the clusters of a scatter plot, one per group: the annotation sibling of mark_point() (ggforce's geom_mark_hull / geom_mark_ellipse in simplified, dependency-free form). This is a syntax-sugar composite mark.

Usage

mark_encircle(
  plot,
  mapping = NULL,
  data = NULL,
  position = NULL,
  ...,
  shape = c("hull", "ellipse"),
  expand = 0.05,
  radius = 0.05,
  alpha = NULL,
  rasterize = FALSE,
  rasterize_dpi = 300,
  rasterize_dev = "cairo"
)

Arguments

plot: A plotit object
mapping: Optional aesthetics: x, y plus an optional discrete channel (colour/fill/group) giving one envelope per level
data: Optional data for this layer
position: Position adjustment.
...: Other arguments passed to the underlying geom_polygon (fill, colour, linewidth default to the primary token, the faint neutral, and the thin stroke).
shape: "hull" (convex hull) or "ellipse" (t-based data ellipse, stat_ellipse engine at 0.95 level)
expand: Proportional outward dilation of the envelope (default 0.05 = 5% of each vertex's distance from the envelope centroid; approximates ggforce's npc expansion). 0 keeps the raw hull.
radius: Corner-rounding strength (default 0.05): one Chaikin round per 0.05 smooths the hull corners; 0 keeps sharp corners. Simplified counterpart of ggforce's concavity.
alpha: Envelope fill opacity; NULL (default) uses the annotation token alpha_annot (0.18).
rasterize: If TRUE, rasterize via ggrastr::rasterise().
rasterize_dpi: DPI for rasterization (default 300).
rasterize_dev: Graphics device for rasterization (default "cairo").

Value

Modified plotit object

Details

Equivalent expansion:


  shape = "hull"    is  grDevices::chull() vertices per group, dilated
                    outward by `expand`, rounded by `radius`, then
                    mark_polygon(fill = primary, colour = faint)
  shape = "ellipse" is  ggplot2::stat_ellipse() per group, dilated the
                    same way, then mark_polygon()

ggforce's label and arrow decorations are not part of this layer; annotate groups with mark_text() / mark_label() instead.

References

ggforce: geom_mark_hull / geom_mark_ellipse

R: grDevices::chull() (convex hull) / ggplot2 stat_ellipse()

Examples

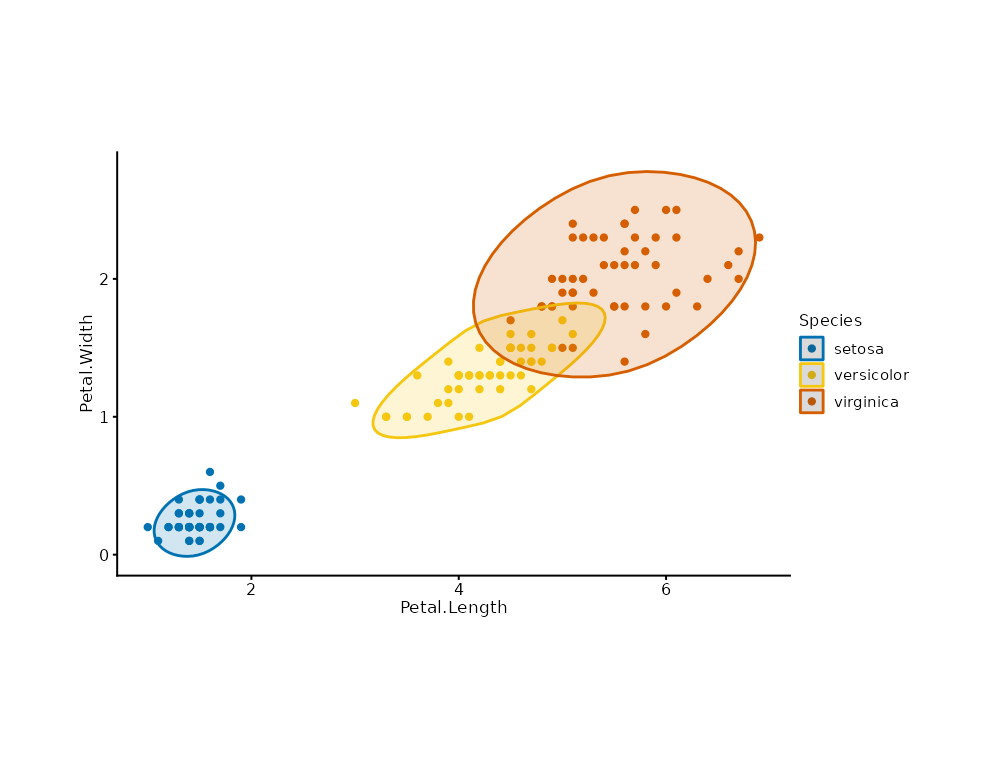

plotit(iris, encode(x = Petal.Length, y = Petal.Width, colour = Species)) |>
  mark_point() |>
  mark_encircle(shape = "ellipse")
